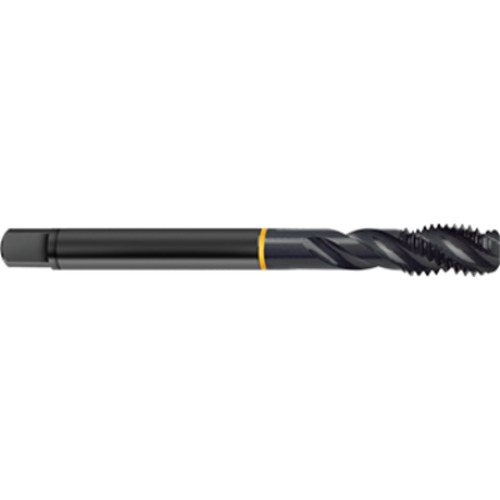

5/8″ - 11 UNC 4-Flute, H5 Semi-Bottoming Series/List # 4407 Spiral Flute Tap
| Thread Diameter Size (TDZ) | 5/8″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 11 | Chamfer | 2-3 Form C |
| Thread Standard | UNC | Coating | Black Oxide |
| Overall Length (OAL) | 3.811″ | Flute Length | 0.9449″ |
| Thread Cutting Part Length (THL) | 0.944″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | 4407 |
Product Features
| Country of Origin | DE |
Shipping Info
Package Length
4.00000
Package Width
1.00900
Package Height
1.00900
Package Weight
.180
