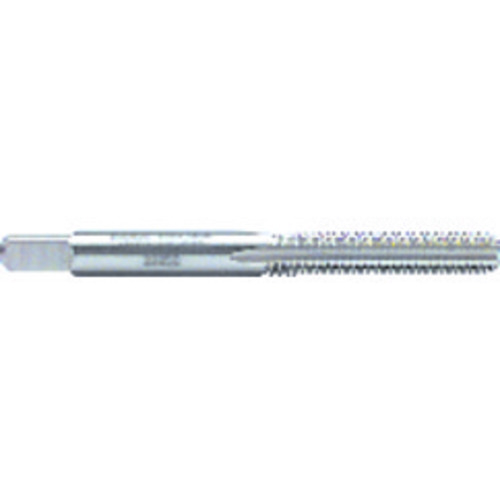

2046 3/4-16 BOT H5 4FL
| Thread Diameter Size (TDZ) | 3/4″ | Chamfer | 1 to 2 Threads |
| Threads per Inch (TPI) | 16 | Coating | Uncoated |
| Thread Standard | NF | Flute Type | Straight |
| Overall Length (OAL) | 4-1/4″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 2″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 3/4″ - 16 |
| Tool Type | General Purpose Tap |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. |
Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.40000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.33
