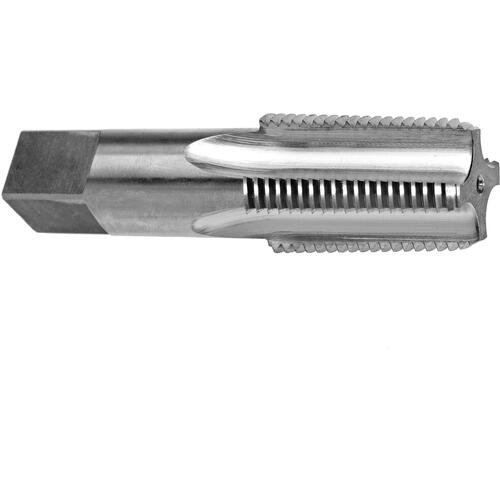

1 1/2-11 1/2 NPT 7FL CONTRU RELIEF GRD THD TAPER PIPE TAPS
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1-1/2″ | Chamfer | Plug |
| Threads per Inch (TPI) | 11.5 | Coating | Uncoated |
| Thread Standard | NPT | Cutting Edge Material | HSS |
| Usable Length (LU) | 1-3/4″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Overall Length (OAL) | 4-1/4″ | Flute Length | 1-3/4″ |
| Thread Cutting Part Length (THL) | 1-3/4″ | Square Size | 1.125″ × 1″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ | Thread Size | 1-1/2″ - 11.5 |
| Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
3.807
